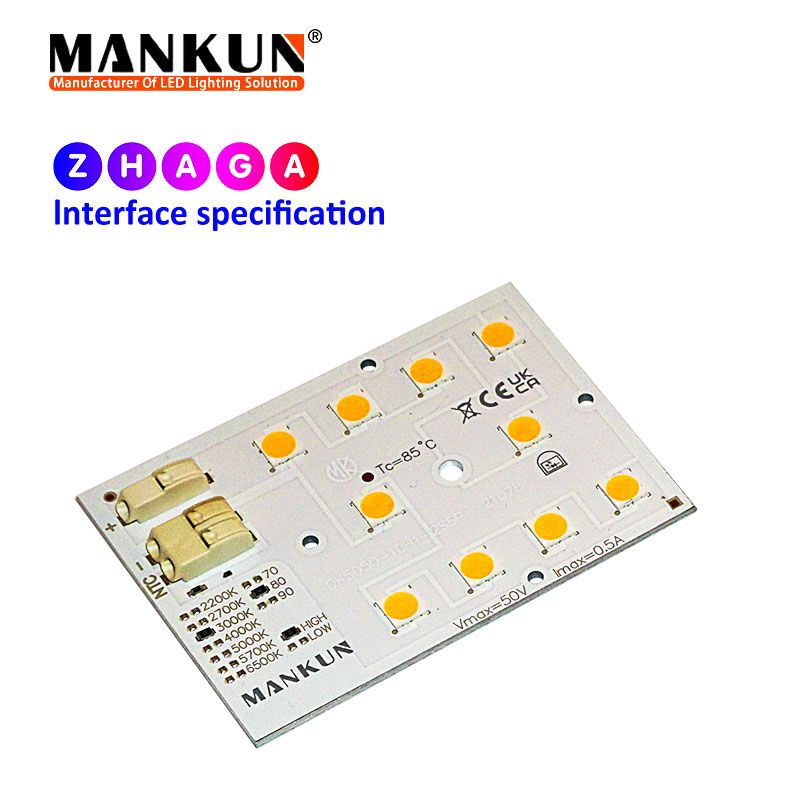

72.2x49.5mm PCB with 10x1 LumiLEDs 5050 LEDs module for Street Lighting 21078
_ Module Input Voltage DC48V_ Module power up to 25W
_ Module Efficacy 194 lm/W at Irated and tp = 25 ¡ãC
_ Module dimension 49.5 x 72.2 x 8 mm
_ LUMILEDS SMD 5050 chip
_ Colour temperatures: 4000K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120¡ã
_ Tp rated: 75 ¡ãC
_ Tc: 85 ¡ãC
_ Irated Current : 300 mA
_ Imax Current : 800 mA
_ Huge performance temperature range from -40 ... +85 ¡ãC
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 15 compliant
_ For use with standard 8x1 lenses (e.g. DARKOO Strada 8x1)
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 80,000 hours
_ 5 years guarantee (conditions at www.mankun.net) Get Best Price Contact Now
