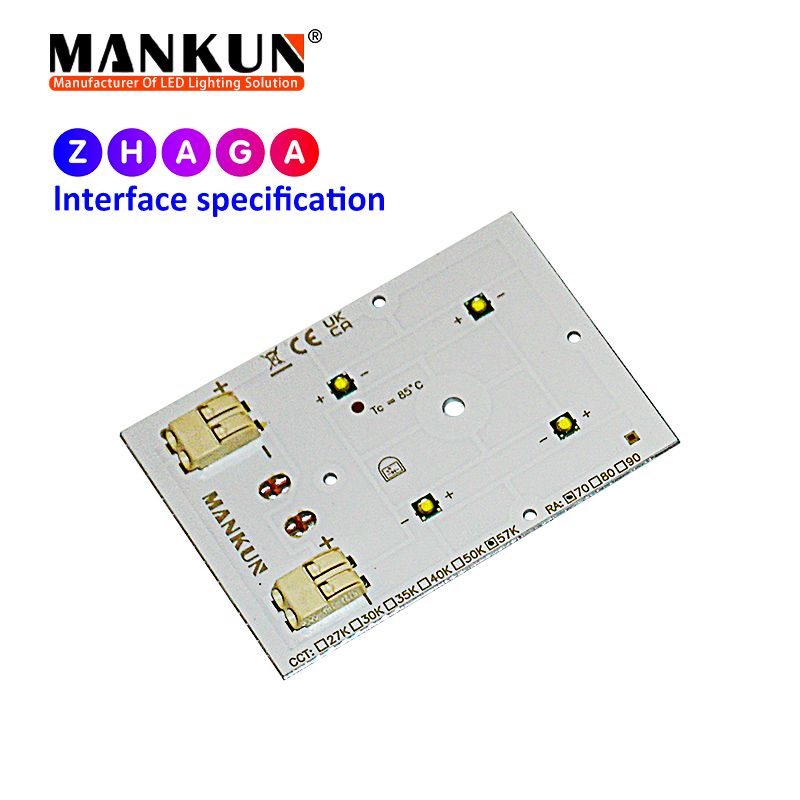

72.2x49.5mm PCB with 2x2 MANKUN 3535 LED module for 13W DC12V Street Lighting 20950
_ Module Input Voltage DC12V_ Module power up to 12.5W
_ Module Efficacy 156 lm/W at Irated and tp = 25 ¡ãC
_ Module dimension 49.5 x 72.2 x 8 mm
_ MANKUN SMD 3535 chip
_ Colour temperatures: 5700K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120¡ã
_ Tp rated: 75 ¡ãC
_ Tc: 105 ¡ãC
_ Irated Current : 700 mA
_ Imax Current : 1500 mA
_ Huge performance temperature range from -40 ... +105 ¡ãC
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 15 compliant
_ For use with standard 2x2 lenses (e.g. DARKOO Strada 2x2)
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 100,000 hours
_ 5 years guarantee (conditions at www.mankun.net)
