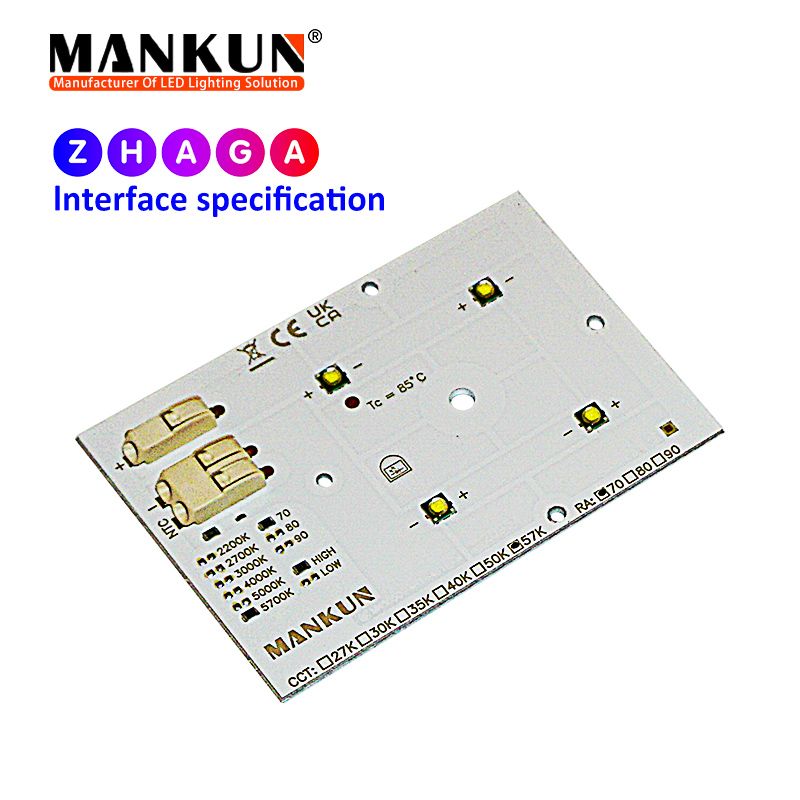

• 72.2x49.5mm PCB with 2x2 MANKUN 3535 LED module for 13W DC12V Street Lighting 20954
72.2x49.5mm PCB with 2x2 MANKUN 3535 LED module for 13W DC12V Street Lighting 20954

72.2x49.5mm PCB with 2x2 MANKUN 3535 LED module for 13W DC12V Street Lighting 20954

_ Module Input Voltage DC12V
_ Module power up to 12.5W
_ Module Efficacy 156 lm/W at Irated and tp = 25 ¡ãC
_ Module dimension 49.5 x 72.2 x 8 mm
_ MANKUN SMD 3535 chip
_ Colour temperatures: 5700K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120¡ã
_ Tp rated: 75 ¡ãC
_ Tc: 105 ¡ãC
_ Irated Current : 700 mA
_ Imax Current : 1500 mA
_ Huge performance temperature range from -40 ... +105 ¡ãC
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 15 compliant
_ For use with standard 2x2 lenses (e.g. DARKOO Strada 2x2)
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 100,000 hours
_ 5 years guarantee (conditions at www.mankun.net)
Get Best Price Contact Now

An Experienced Metal Core PCB Manufacturer

MANKUN's been manufacturing MCPCB Boards for 18+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.


Item

PCB Production Capability

Base Material

Aluminium

Layer

1L

Finished inner/outer cooper thickness

1OZ

Aluminum thickness

1.6mm

Thermal Conductivity

2W/m.K

Minimum Size

1500mm 1layer

Controlled Impedance

¡À5%

Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

Surface treatment

OSP


Check our Aluminum core PCB manufacturing capabilities in the following table:

Technical parameters and process capability of metal substarte(MCPCB)

ITEM

SPECIFICATION

Surface

LF HASL,immersion gold,immersion siliver,OSP

Layer

Single side,double sided Multilayer and special structure

Maximum PCB size

240mmx1490mm OR 490x1190mm

PCB thickness

0.4-3.0mm

Copper Foil thickness

H 1/2/3/4(oz)

Insulation layer thickness

50/75/100/125/150/175/200(um)

Metal Base thickness

AIuminum(1100/3003/5052/6061),Copper AIuminum

Metal Base thickness

0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)

Shaping

Die punching/CNC Route/V-Cut

Test

100% open&short test

Shaping tolerance

Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm

Hole tolerance

+-0.5mm

Min.Hole DIameter

Single side 0.5/Double sided PTH0.3MM

Solder mask

green/white/black/red/yellow

Min.letter height

0.8mm

Min.line space

0.15

Min.letter width

0.15

Sile screen color

blue/white/black/red/yellow

Sopecial hole

Spot facing/cup hole/buried via hole/buried tank

File format

Gerber,Protel,PowerPCB,AutoCAD etc



Technical Specifications:


Model No. MK5050-4H1-4S1P-20954 Power 12.5W
PCB Size 72.2mm*49.5mm*1.6mm Luminous Efficiency 156lm/W
Input Voltage DC12V Current 1050mA
Color Temperature 4000K Color Rendering Index Ra70
Anti-Surge Class 2.0KV Insulation Class ACW>2KV
Thermal Conductivity 2.0W/m.K Operating Temperature -20~+45¡ãC


DIMENSIONS(All dimensions in mm).
