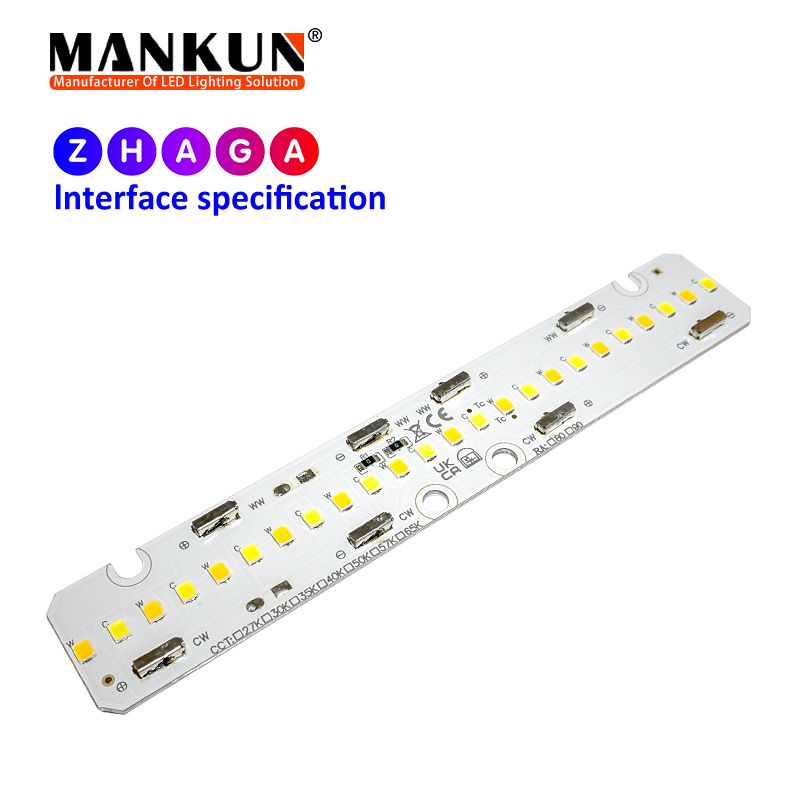

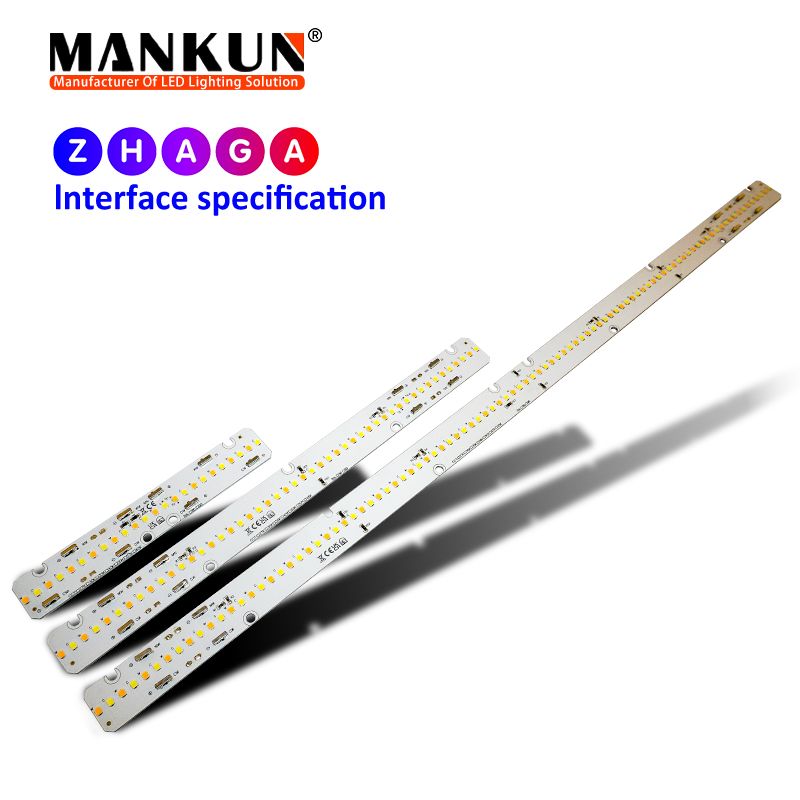

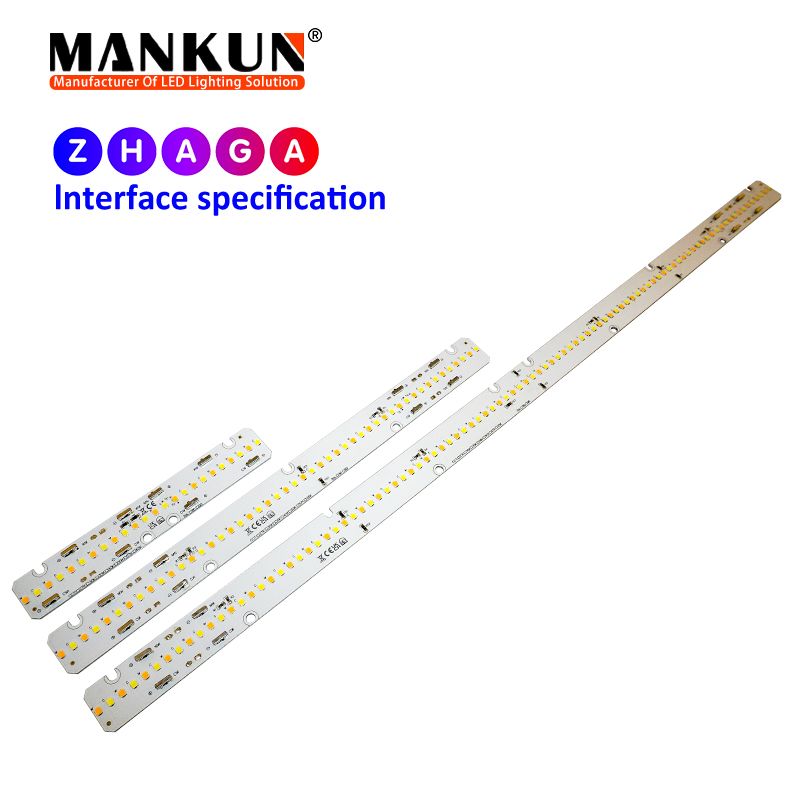

24x140mm Colour Temperature SMD 2835 LED MODULE DC36V Injection LED module light 212117
_ Module Input Voltage DC36V_ Module power up to 5W
_ Module Efficacy 200 lm/W at Irated and tp = 25 ¡ãC
_ Module dimension 20 x 140 x 8 mm
_ LUMILEDS SMD 2835 chip
_ Colour temperatures: 2700K,3000K,4000K,5000K,6500K
_ Colour rendering index Ra: >80
_ Colour accuracy initially: 3 SDCM
_ Beam characteristic: 120¡ã
_ Tp rated: 75 ¡ãC
_ Tc: 85 ¡ãC
_ Irated Current : 150 mA
_ Imax Current : 300 mA
_ Huge performance temperature range from -40 ... +85 ¡ãC
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)
_ Zhaga Book 7 compliant
_ Simple installation via clips or screws
_ Long lifetime up to 80,000 hours
_ 5 years guarantee (conditions at www.mankun.net) Get Best Price Contact Now
An Experienced Metal Core PCB Manufacturer
MANKUN's been manufacturing MCPCB Boards for 18+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.
|
Item |
PCB Production Capability |
|
Base Material |
Aluminium |
|
Layer |
1L |
|
Finished inner/outer cooper thickness |
1OZ |
|
Aluminum thickness |
1.6mm |
|
Thermal Conductivity |
2W/m.K |
|
Minimum Size |
1500mm 1layer |
|
Controlled Impedance |
¡À5% |
|
Outline profile |
Rout/ V-cut/ Bridge/ Stamp hole |
|
Surface treatment |
OSP |
Check our Aluminum core PCB manufacturing capabilities in the following table:
|
Technical parameters and process capability of metal substarte(MCPCB) |
|
|
ITEM |
SPECIFICATION |
|
Surface |
LF HASL,immersion gold,immersion siliver,OSP |
|
Layer |
Single side,double sided Multilayer and special structure |
|
Maximum PCB size |
240mmx1490mm OR 490x1190mm |
|
PCB thickness |
0.4-3.0mm |
|
Copper Foil thickness |
H 1/2/3/4(oz) |
|
Insulation layer thickness |
50/75/100/125/150/175/200(um) |
|
Metal Base thickness |
AIuminum(1100/3003/5052/6061),Copper AIuminum |
|
Metal Base thickness |
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) |
|
Shaping |
Die punching/CNC Route/V-Cut |
|
Test |
100% open&short test |
|
Shaping tolerance |
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm |
|
Hole tolerance |
+-0.5mm |
|
Min.Hole DIameter |
Single side 0.5/Double sided PTH0.3MM |
|
Solder mask |
green/white/black/red/yellow |
|
Min.letter height |
0.8mm |
|
Min.line space |
0.15 |
|
Min.letter width |
0.15 |
|
Sile screen color |
blue/white/black/red/yellow |
|
Sopecial hole |
Spot facing/cup hole/buried via hole/buried tank |
|
File format |
Gerber,Protel,PowerPCB,AutoCAD etc |
