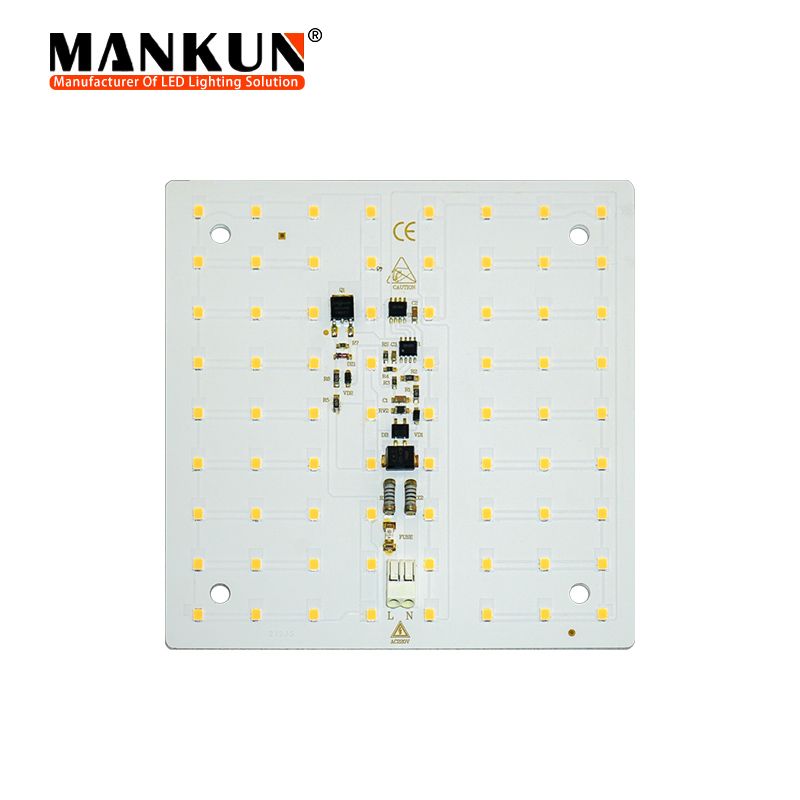

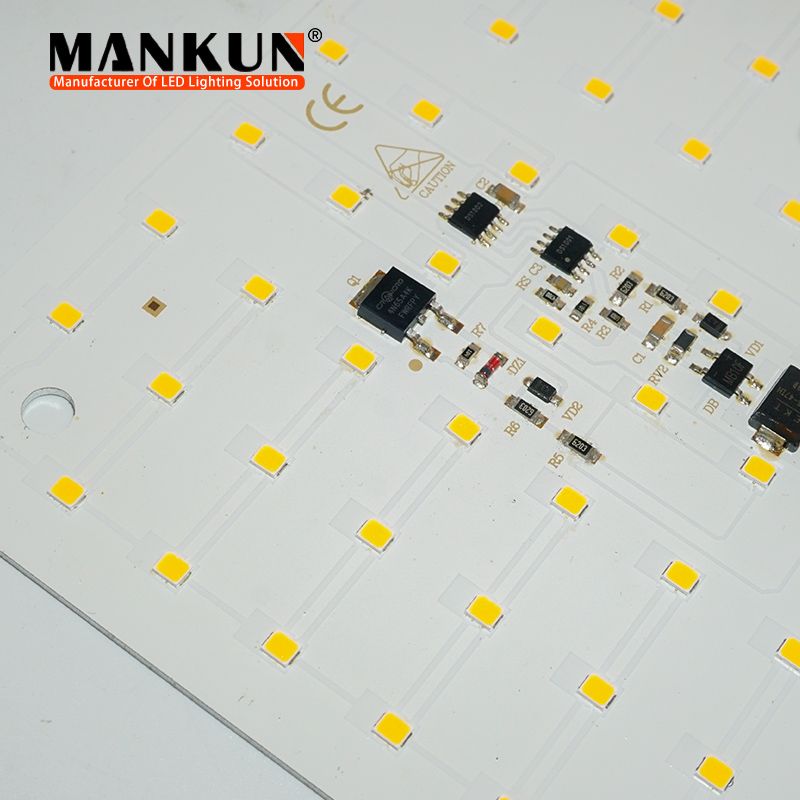

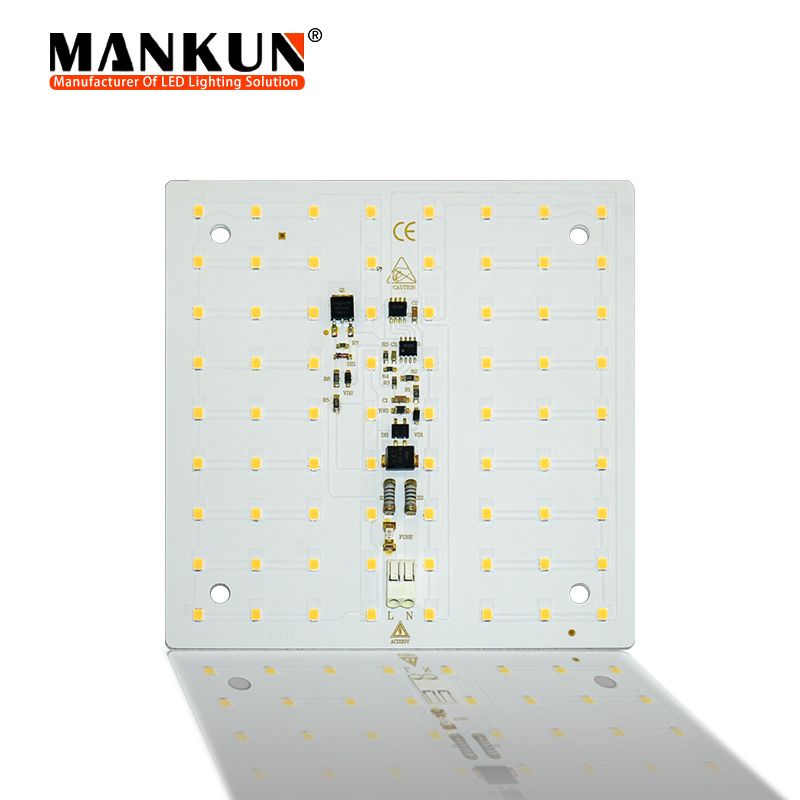

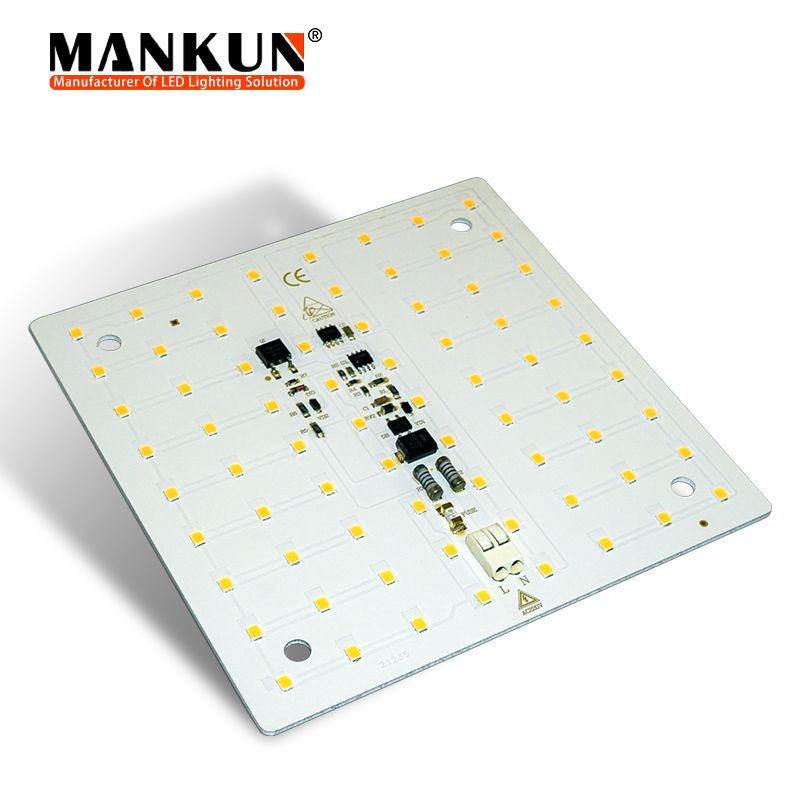

DOB Driverless AC230V LED Module PCB design Assembly 30W with led 123Lm/w for ceiling light
Technical data• Rigid board LED module
• Input voltage: AC 230V, 50¨C60 Hz
• Power factor: > 0.97
• Efficacy of the module up to 123 lm/W
• Colour temperatures 2700K, 3000K, 4000K, 5000K
• High colour rendering index CRI > 80

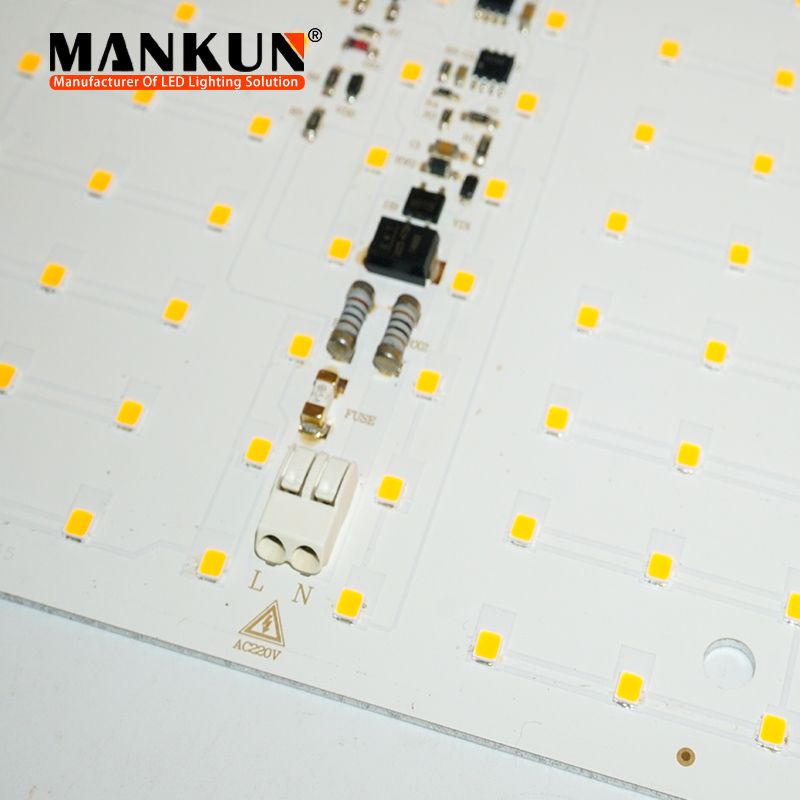

• On-board push-in terminals (WAGO 2060)
• Low Total Harmonic Distortion THD<15%
• Heat-sink required to preserve nominal power
• Small colour tolerance
• Small luminous flux tolerances
• Direct connection to mains
• Dimmable
• Simple installation
• Life-time of 50,000 hours or more
• 2-year guarantee
Get Best Price Contact Now
An Experienced Metal Core PCB Manufacturer
MANKUN's been manufacturing MCPCB Boards for 18+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.
|
Item |
PCB Production Capability |
|
Base Material |
Aluminium |
|
Layer |
1L |
|
Finished inner/outer cooper thickness |
1OZ |
|
Aluminum thickness |
1.6mm |
|
Thermal Conductivity |
2W/m.K |
|
Minimum Size |
1500mm 1layer |
|
Controlled Impedance |
¡À5% |
|
Outline profile |
Rout/ V-cut/ Bridge/ Stamp hole |
|
Surface treatment |
OSP |
Check our Aluminum core PCB manufacturing capabilities in the following table:
|
Technical parameters and process capability of metal substarte(MCPCB) |
|
|
ITEM |
SPECIFICATION |
|
Surface |
LF HASL,immersion gold,immersion siliver,OSP |
|
Layer |
Single side,double sided Multilayer and special structure |
|
Maximum PCB size |
240mmx1490mm OR 490x1190mm |
|
PCB thickness |
0.4-3.0mm |
|
Copper Foil thickness |
H 1/2/3/4(oz) |
|
Insulation layer thickness |
50/75/100/125/150/175/200(um) |
|
Metal Base thickness |
AIuminum(1100/3003/5052/6061),Copper AIuminum |
|
Metal Base thickness |
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) |
|
Shaping |
Die punching/CNC Route/V-Cut |
|
Test |
100% open&short test |
|
Shaping tolerance |
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm |
|
Hole tolerance |
+-0.5mm |
|
Min.Hole DIameter |
Single side 0.5/Double sided PTH0.3MM |
|
Solder mask |
green/white/black/red/yellow |
|
Min.letter height |
0.8mm |
|
Min.line space |
0.15 |
|
Min.letter width |
0.15 |
|
Sile screen color |
blue/white/black/red/yellow |
|
Sopecial hole |
Spot facing/cup hole/buried via hole/buried tank |
|
File format |
Gerber,Protel,PowerPCB,AutoCAD etc |
