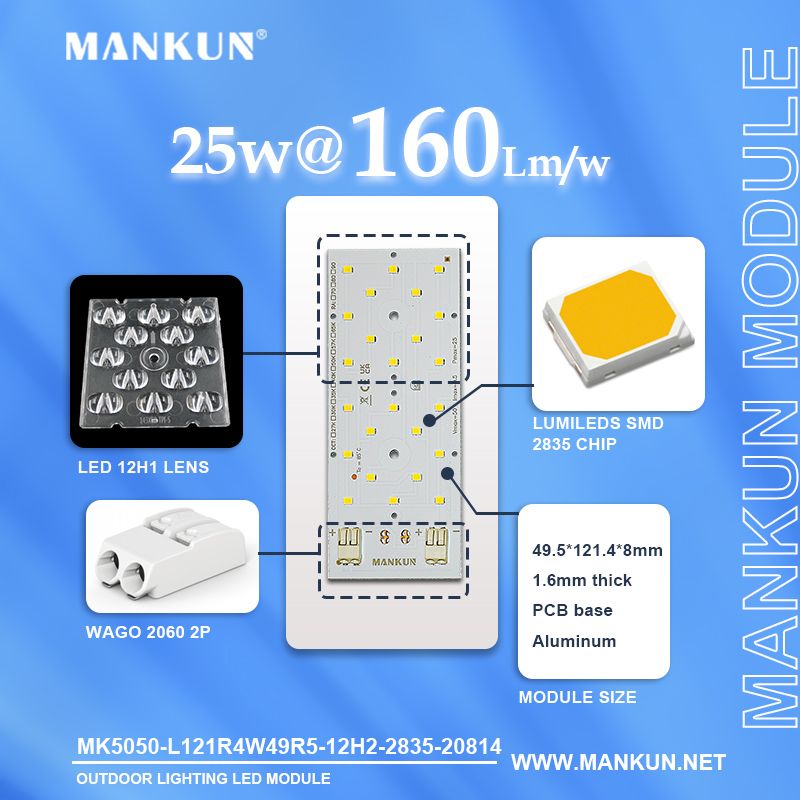

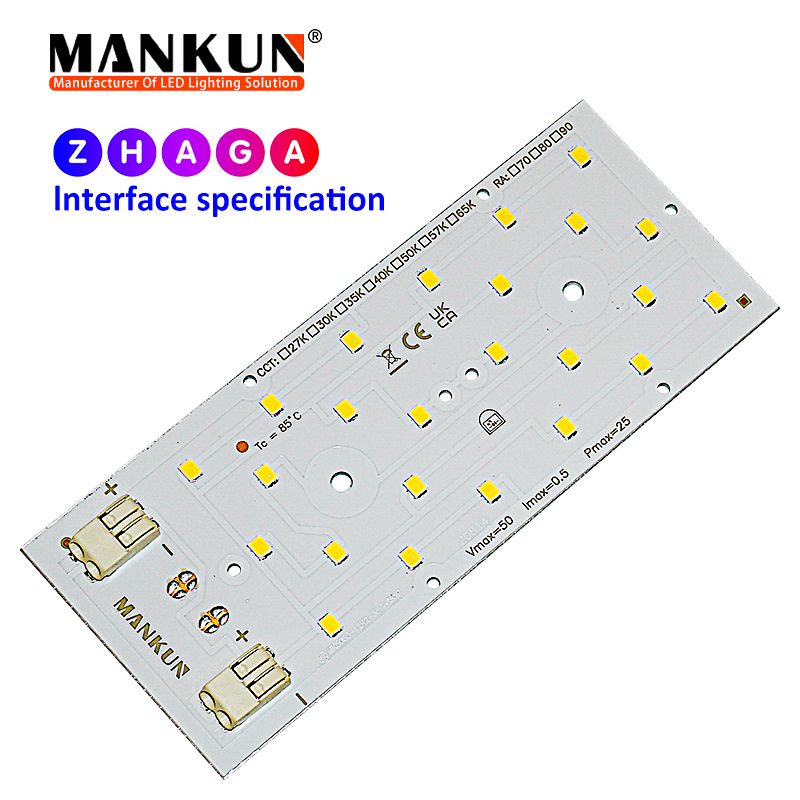

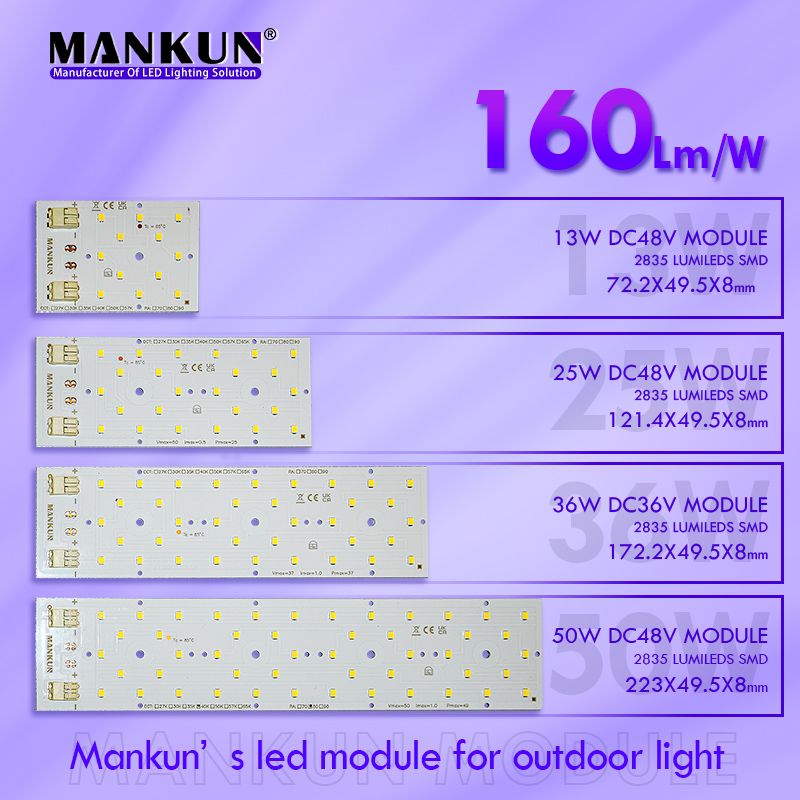

PCB Module - 70 CRI - 49.5x121.4 mm for Outdoor Lighting modules 20814
_ Module Input Voltage DC48V_ Module power up to 25W
_ Module Efficacy 160 lm/W at Irated and tp = 25 ¡ãC
_ Module dimension 49.5 x 121.4 x 8 mm
_ LUMILEDS SMD 2835 chip
_ Colour temperatures: 4000K
_ Colour rendering index Ra: >70
_ Colour accuracy initially: 5 SDCM
_ Beam characteristic: 120¡ã
_ Tp rated: 75 ¡ãC
_ Tc: 85 ¡ãC
_ Irated Current : 550 mA
_ Imax Current : 600 mA
_ Huge performance temperature range from -40 ... +85 ¡ãC
_ Integrated NTC for overtemperature protection
_ Push-in terminals for simple and quick wiring(WAGO 2060)

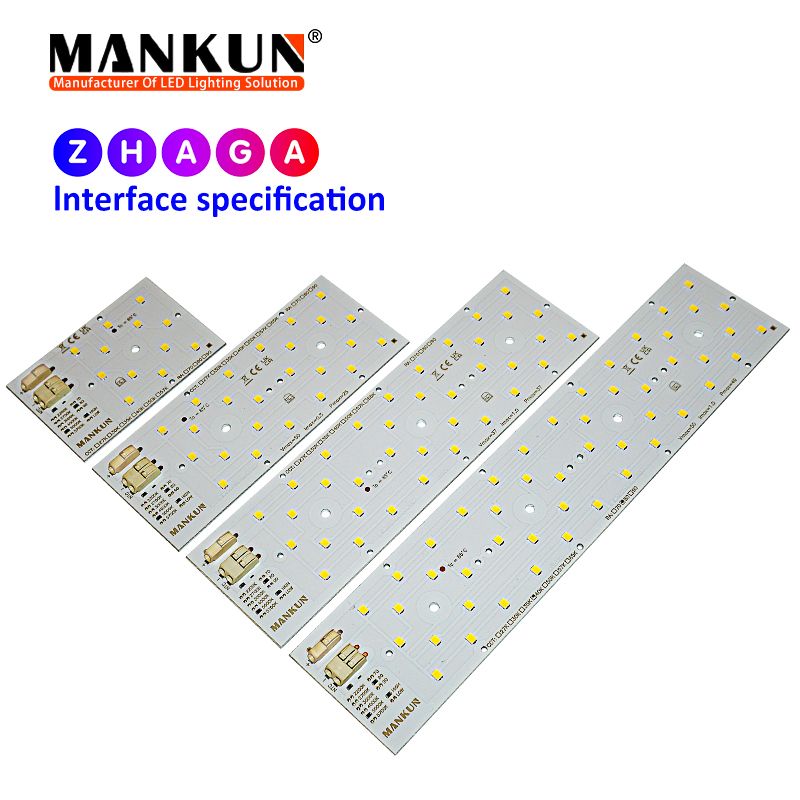

_ Zhaga Book 15 compliant
_ For use with standard 12H1 lenses (e.g. DARKOO Strada 12H1)
_ Installation of the module together with lens in the luminaire bymeans of an M3 screw
_ Long lifetime up to 80,000 hours
_ 5 years guarantee (conditions at www.mankun.net)
Get Best Price Contact Now
An Experienced Metal Core PCB Manufacturer
MANKUN's been manufacturing MCPCB Boards for 18+ years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allow you to get high-quality aluminum PCBs done within budget. Our printed Aluminum PCBs are widely used for LED lighting, power equipment and automotive systems.
|
Item |
PCB Production Capability |
|
Base Material |
Aluminium |
|
Layer |
1L |
|
Finished inner/outer cooper thickness |
1OZ |
|
Aluminum thickness |
1.6mm |
|
Thermal Conductivity |
2W/m.K |
|
Minimum Size |
1500mm 1layer |
|
Controlled Impedance |
¡À5% |
|
Outline profile |
Rout/ V-cut/ Bridge/ Stamp hole |
|
Surface treatment |
OSP |
Check our Aluminum core PCB manufacturing capabilities in the following table:
|
Technical parameters and process capability of metal substarte(MCPCB) |
|
|
ITEM |
SPECIFICATION |
|
Surface |
LF HASL,immersion gold,immersion siliver,OSP |
|
Layer |
Single side,double sided Multilayer and special structure |
|
Maximum PCB size |
240mmx1490mm OR 490x1190mm |
|
PCB thickness |
0.4-3.0mm |
|
Copper Foil thickness |
H 1/2/3/4(oz) |
|
Insulation layer thickness |
50/75/100/125/150/175/200(um) |
|
Metal Base thickness |
AIuminum(1100/3003/5052/6061),Copper AIuminum |
|
Metal Base thickness |
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) |
|
Shaping |
Die punching/CNC Route/V-Cut |
|
Test |
100% open&short test |
|
Shaping tolerance |
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm |
|
Hole tolerance |
+-0.5mm |
|
Min.Hole DIameter |
Single side 0.5/Double sided PTH0.3MM |
|
Solder mask |
green/white/black/red/yellow |
|
Min.letter height |
0.8mm |
|
Min.line space |
0.15 |
|
Min.letter width |
0.15 |
|
Sile screen color |
blue/white/black/red/yellow |
|
Sopecial hole |
Spot facing/cup hole/buried via hole/buried tank |
|
File format |
Gerber,Protel,PowerPCB,AutoCAD etc |
Technical Specifications:
Model No.
MK5050-12H2-8S3P-20814
Power
25W
PCB Size
121.4mm*49.5mm*1.6mm
Luminous Efficiency
160lm/W
Input Voltage
DC48V
Current
0.55A
Color Temperature
4000K
Color Rendering Index
Ra70
Anti-Surge Class
2.0KV
Insulation Class
ACW>2KV
Thermal Conductivity
2.0W/m.K
Operating Temperature
-20~+45¡ãC
Specification
|
Brand |
Darkoo |
|
Product Type |
DK-5050-LENS-12H1 |
|
Product Specification |
49.5*49.5*8.22MM |
|
Angle |
30¡ã, 60¡ã,143*50¡ã,156*68¡ã |
|
Material |
PC-UV |
|
Temperature Resistance |
-35¡ãC + 105¡ãC |
|
LED Series |
5050 |
|
Product Applications |
Led Lighting |
